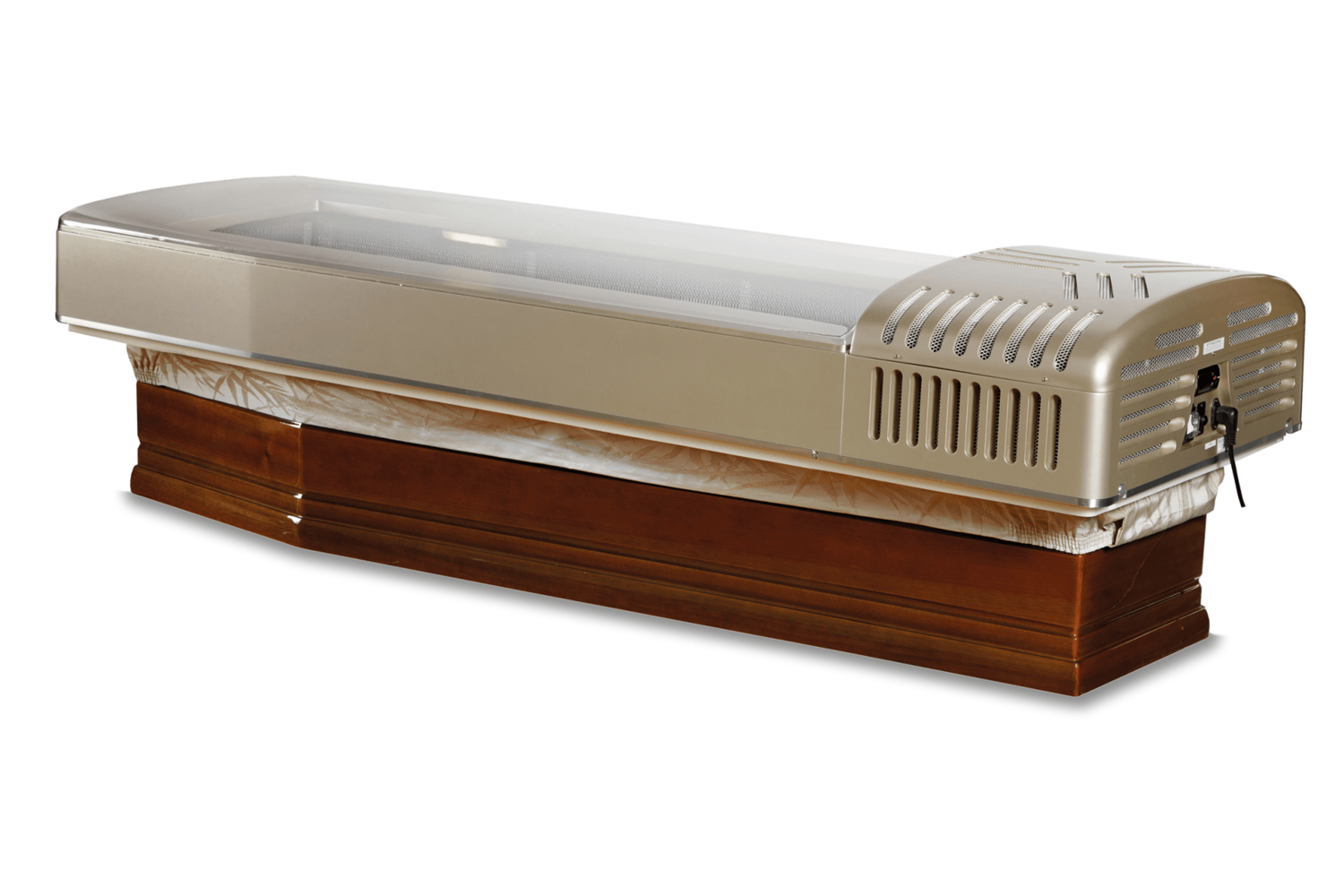

IBERNSTAR® combines elegance and refinement, with a refrigeration system that ensures the preservation of the corpse already placed in the coffin during the wake and observation period. Thanks to the wide transparent surface, the view of the deceased is almost total and the addition of an internal LED lighting with light intensity control creates a discreet environment. Furthermore, an ionizing system eliminates or drastically reduces odors, microorganisms and bacteria. Due to its dimensional characteristics and the large lower surface covered with a special gasket, IBERNSTAR® can be fitted indiscriminately on all types of coffin, both straight and shouldered, from a minimum external length of cm 160 up to a maximum of cm 210. Being equipped with a static refrigeration system (with an evaporator running along the perimeter of the coffin), IBERNSTAR® is a single piece, transportable by two operators and can be applied by simply placing it on the coffin.
MAIN FEATURES

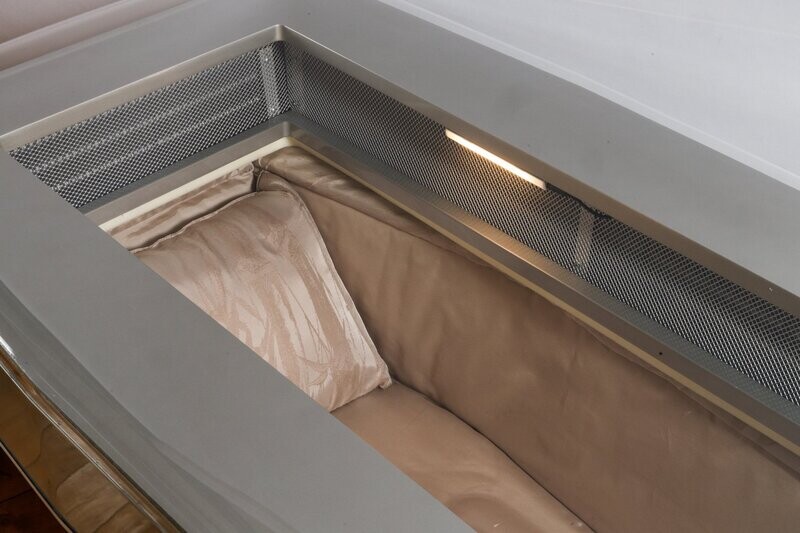

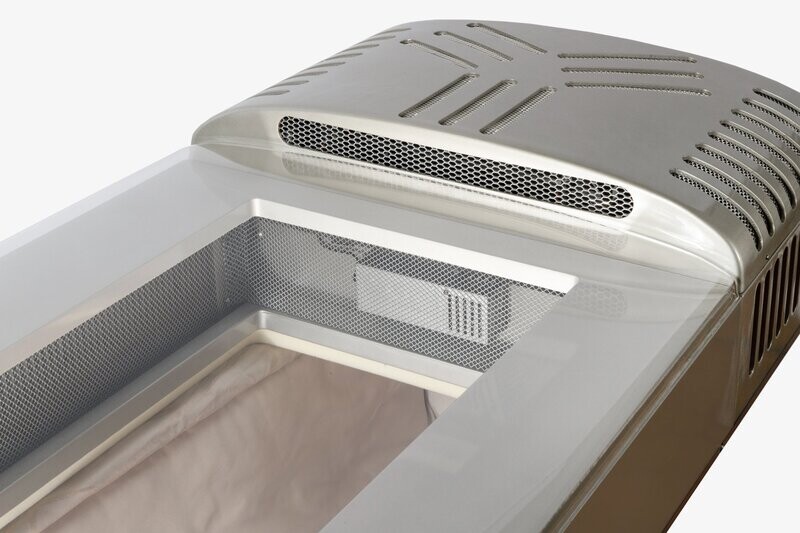

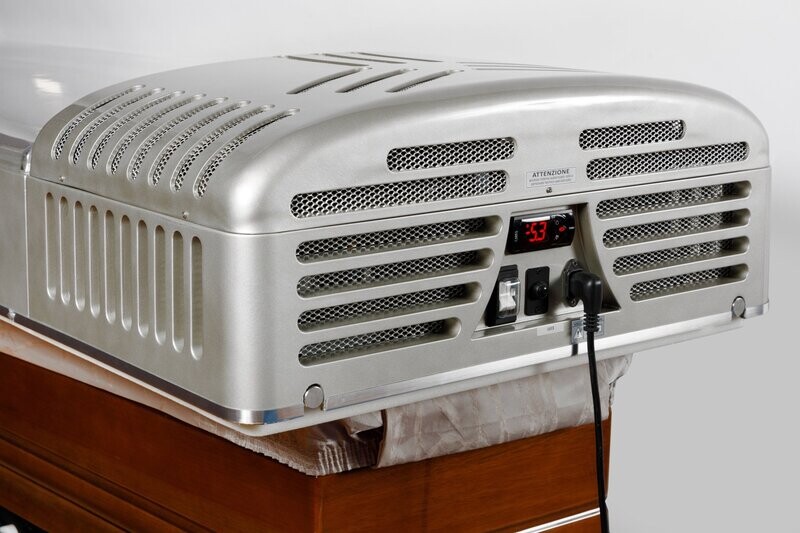

IBERNSTAR® consists of a high-density polyurethane foam shell that provides adequate strength of the entire structure, lightness and thermal insulation. The upper part is made of a large transparent polycarbonate surface for viewing the body. This system consists of a motocondensing unit placed at the feet of the deceased, with aeration slits and evaporating part along the perimeter of the unit, internally protected by a metal mesh.
Technical data:
Absorption | W400 |
Volt | 230-1-50 Hz |
Refrigerating gas | R290 |
Gas content | Kg. 0,110 |
Thermostat scale | +45°C/-30°C |
Minimum temperature | -5°C/-8°C |
Dimensions:
Total lenght | 209,70 cm |
Shoulder lenght | 73,20 cm |
Engine side height | 28 cm |
Height with transparent surface | 21 cm |
Feet side width | 69,50 cm |
Head side width | 69,50 cm |
Height | 16 cm |
Weight | 45 kg |
