Surgical lamp

Surgical lamp

Store / Lampade scialitiche
0,00
In stock
Product Details

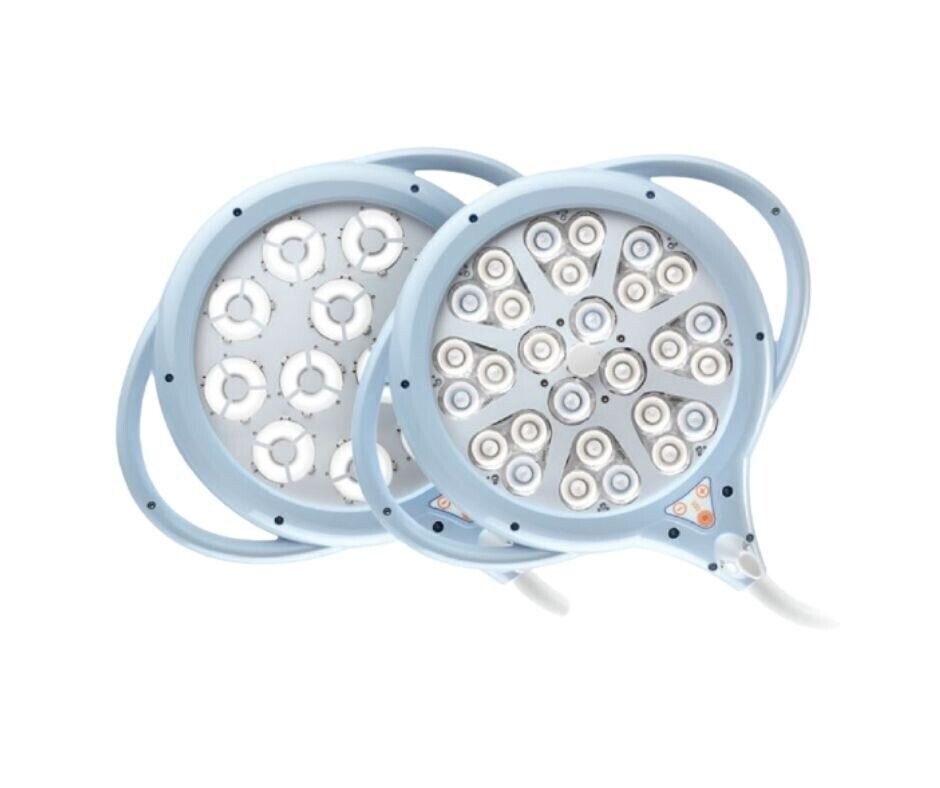

The operating lights have compact dimensions and a handy design. The dome with two comfortable side handles, facilitates positioning and manoeuvrability, thus reducing space requirements. Particularly suitable for use in anatomical rooms for performing autopsies.

Compliant with IEC 60601-2-41.

Available in the following versions:

  • -CEATA82 lamp pentaled 28 floor lamp;
  • -CEATA82.0001 lamp pentaled 26 ceiling lamp;
  • -CEATA82.0002 lamp pentaled 28 wall lamp;
  • -CEATA83 lamp pentaled 28 floor lamp;
  • -CEATA83.0001 lamp pentaled 12 ceiling lamp;
  • -CEATA83.0002 lamp pentaled 12 wall lamp.
Technical data Pentaled 12 Pentaled 28
Light intensity at 1 m distance (Ec) 100.000 lux 120.000 lux
Light head diameter 40 cm 40 cm
Color temperature 4.500 k 2 selections: 4.500 - 5.000 k
Color rendering index (CRI) 96 Ra 94 Ra
Diameter adjustment Fixed Fixed
D10 light field diameter where illuminance reached 10% of Ec 160 mm 280 mm
Light field diameter adjustable from - to // 110 - 330 mm
Depth of illumination IEC 60601 - 2 - 41 (L1+2) at 60% 850 mm 920 mm
Depth of illumination IEC 60601 - 2 - 41 (L1+2) at 20% 1500 mm 1550 mm
Total radiated energy Ee where the illuminance reaches max level 414 W/m2 456 W/m2
Ratio between radiated energy Ee and illuminance Ec 3,68 3,62
Avarage led life > 60.000 > 60.000
Control of the illuminance 20 - 100% 20 - 100%
Electrical absorption 20 W - 40 VA 47 W - 85 VA
