Cold room 2 bodies, with frontal door. Box made with internal and external finishing of painted steel with a thickness of 6/10. Thermic insulation made of injection between the two plates of foamed polyurethane, density 40 kg/mc with a thickness of 80 mm, atoxic and self-extinguishing.

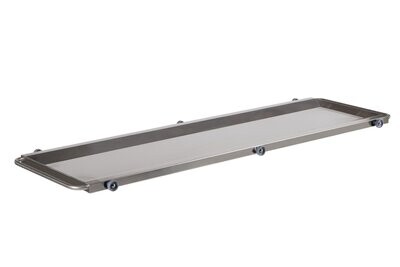

Internal structure to contain coffins made with a stainless steel AISI 304 2B shaped profile that, through a sliding system, allows the placing of a coffin. Eventually it is possible to request the stretcher (-CEAC030) as additional accessory that can be positioned instead of the sliding system for coffins.
Monoblock version refrigerating plant placed on the cold room ceiling and functioning with an average temperature of 0°C (-5°C/+5°C).
Digital reading electronic control panel with thermostat, thermometer, defrosting timer, alarms for anomalies and temperature changes, with 4 wheels for handlings (2 of which with brake).
The two places cold room is supplied assembled with the only exception of the motor to be placed on ceiling following the easy supplied instructions. On request, intallation can be made by our technicians to be separately quoted. We recommend to verify always the dimensions of the access and the available spaces where the cold room has to be positioned. Shipment and electric connection in place are not included in the quotation.
Door size:
Width | Height |
85 cm | 148 cm |
Size including the top mounted plant:
Width | Height | Depth |
96 cm | 214 cm | 227 cm |
Technical data:
Working temperature | 0°C |
Temperature range | -5°C / +5°C |
Absorbed power | Kw 0,7 |
Supply tension | V230 / 1 / 50Hz |
Refrigerating output | W 950 0°C / +35°C |
